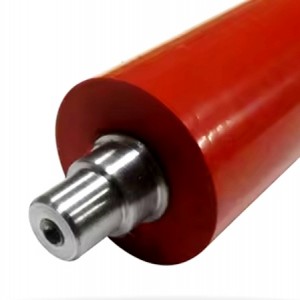

Heat mapping technology is a essential tool for analyzing the thermal profile of calender rollers in commercial laminating systems. These rollers are vital for ensuring uniform output, and thermal gradients can lead to print flaws, substrate warping, or delamination.

To use thermal imaging accurately, start by powering on the equipment and letting the pressure roller to reach its standard working heat. This usually takes 10 to 40 minutes depending on the unit configuration. Once stable, use a calibrated thermal camera to capture the total length of the roller. Maintain the camera at a uniform offset and orientation to ensure reliable cross-section analysis across the roller’s axis. Prevent obstructions such as condensation, debris, or shiny coatings that might skew the readings.

Document infrared scans along the entire surface area of the roller, paying priority notice to the outer rims and core, as these areas typically display temperature variations. Detect thermal hot zones that are substantially hotter than the nearby surfaces, or temperature dips that indicate insufficient heat transfer. These anomalies could be caused by defective coils, broken controls, asymmetric load, or contaminant deposits.

Cross-reference the images to a reference heat profile taken when the machine was operating correctly. If variances are found, deactivate the system and examine the resistive elements, protective layers, and axial positioning. Regular thermal imaging checks, performed weekly or monthly depending on operational intensity, help prevent unexpected downtime and ensure uniform quality.

Consistently record your findings and distribute to engineering staff to track trends over time. This preventive strategy not only reduces wear and tear but also delivers superior غلطک پرس پرینتر results with improved yield.
